INDUSTRIAL SIZE REDUCTION
industrial dryer
pulverizer

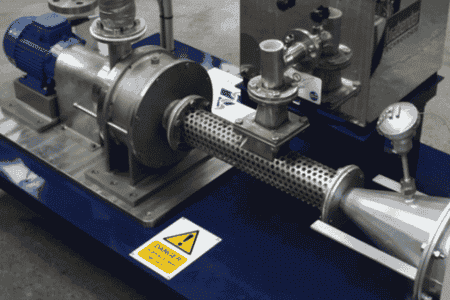

The Scott Equipment Dryer-Pulverizer combines drying, deagglomeration, and particle size reduction in one continuous processing system.
Designed for materials that require both moisture removal and size reduction, the system uses high-velocity heated air and mechanical action to dry material while simultaneously breaking it down into a finer, more consistent product.
By combining multiple processing steps into one system, the Dryer-Pulverizer can help simplify production and reduce the need for separate drying and milling equipment.
PERFORMANCE SPECIFICATIONS
50-20,000 KG/HR
milling capacity
UP TO 4,000 KG/HR
EVAPORATION RATE
CONTINUOUS OPERATION
PROCESS CONFIGURATION
DRYING & PULVERIZING
OPERATIONS COMBINED
What is a dryer-pulverizer?
A Dryer-Pulverizer is an industrial processing system that dries and reduces material particle size in a single operation.
Wet material enters the system, where it is exposed to heated airflow and mechanical action. As moisture is removed, the material is simultaneously deagglomerated and reduced in size.
The result is a dry, finer, more consistent product ready for downstream processing, handling, storage, or packaging.
ONE SYSTEM. MULTIPLE PROCESSING STEPS.
COMBINED DRYING AND GRINDING
Remove moisture and reduce particle size in a single continuous process.
Most Efficient Processing
High-velocity airflow and mechanical impact deliver rapid, consistent production.
COST EFFECTIVE FOOTPRINT
Eliminate the need for separate drying and milling equipment to reduce costs and simplify your line.
CONSISTENT PARTICLE SIZE
Produce a uniform, fine powder suitable for downstream handling and processing.
HANDLES CHALLENGING MATERIALS
Process slurries, filter cakes, damp solids, agglomerates, and other difficult feed materials.
HOW DOES A DRYER-PULVERIZER WORK?
The Dryer-Pulverizer combines heated airflow with high-speed mechanical action to dry and reduce material at the same time.
Material Enters THE SYSTEM
Wet material is continuously measured into the Dryer-Pulverizer.
heated air contacts the material
High-velocity heated air begins removing moisture from the product.
Material is pulverized
Mechanical action breaks apart agglomerates, reducing the material to a smaller particle size.
increased surface area improves drying
As material is broken into smaller particles, additional surface area is exposed to the heated air, supporting efficient moisture removal.
dried material exits the system
The processed material leaves the system as a drier, finer, more consistent product for the next stage of production.
LET'S FIND THE BEST SOLUTION FOR YOUR DRYING APPLCIATION
Tell us about your material, current moisture level, particle size, and production requirements
BUILT FOR CHALLENGING MATERIALS
COMMON MATERIALS
Minerals & clays
Chemical products
Calcium carbonate
Industrial products
Agricultural materials
Biomass
Filter cakes
Wet solids
INDUSTRIES SERVED
Minerals & mining
Chemical processing
Food & ingredients
Agriculture
Environmental processing
Recycling
Pigment production
Industrial processing
Dryer-Pulverizer vs. Separate Drying & Milling equipment
A traditional process may require one machine to remove moisture followed by another machine to reduce particle size.
A Dryer-Pulverizer combines these operations into one continuous process.
For suitable materials, this approach can simplify material handling between processing stages while reducing the number of individual pieces of equipment required.
The best configuration depends on the material, incoming moisture, required final moisture, particle size goals, and production rate.
DRYER-PULVERIZER FAQs
What is a Dryer-Pulverizer?
A Dryer-Pulverizer is an industrial processing system that combines drying and particle size reduction. Heated airflow removes moisture, while mechanical action breaks apart and reduces the material.
What does a Dryer-Pulverizer do?
A Dryer-Pulverizer can dry, deagglomerate, and reduce particle size during continuous processing.
Can a Dryer-Pulverizer dry and grind at the same time?
Yes. The system is designed to remove moisture and reduce particle size in the same process.
Why combine drying and pulverizing?
Breaking material apart during drying increases the amount of surface area exposed to heated air. For suitable materials, combining the two operations can also eliminate the need for separate drying and milling steps.
What materials can be processed in a Dryer-Pulverizer?
Potential materials include minerals, clays, agricultural products, biomass, chemicals, industrial powders, filter cakes, wet solids, and other materials requiring both drying and size reduction.
Is a Dryer-Pulverizer a continuous system?
Yes. The Dryer-Pulverizer is designed for continuous processing, with material continuously entering, being dried and reduced in size, and leaving the system.
Need to remove moisture and reduce particle size?
CONTACT US TODAY TO LEARN ABOUT THE DRYER-PULVERIZER
